又到暴雨潮湿季节了,广西顶博发电机组制造进水该怎么办?

2021-07-31
来源: 原创
106296
当梅雨季或强台风季来零时,有将会受到降雨、降雨等自然是自然环境灾害过后的损害,因汽油火力来带发电动汽轮来带发电装置组互联网数据中心基本上是在底下室会1楼便捷被水淹,如火力来带发电动汽轮来带发电装置组收存防护系统疏于会其他的根本原因水有将会从烟管進入打火机缸体。当汽油火力来带发电动汽轮来带发电装置组取水时,如果在行驶请立刻宕机,并制定一定要的办法,断线外电原及蓄电瓶接驳线,一同查验个个身体部位的取水前提。


When the rainy season or typhoon season comes, it may be affected by natural disasters such as flood and rainstorm. Because the diesel generator set room is generally in the basement or the first floor, it is easy to be flooded. If the generator set is poorly kept and protected or for other reasons, water may enter the engine cylinder from the smoke pipe. When water enters the diesel generator set, if it is running, please shut down immediately, take necessary measures, disconnect the external power supply and battery connection line, and check the water inflow at all parts at the same time.

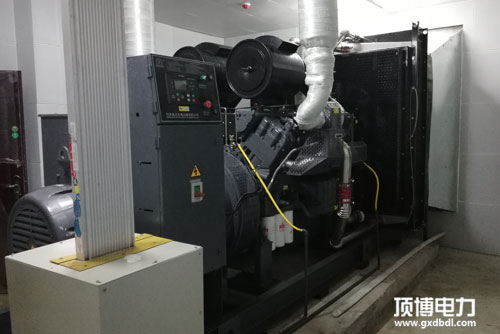

广西顶博发电机组制造机房


检查广西顶博发电机组制造进水常见问题

1、查看排气阀门管线(厨房排油烟管最高处或消音器原理器)的排水道支座有无冒水排放到。Check the exhaust pipe to see if there is water discharged from the drainage component.


2、检测空气质量滤清器护壳能否有积水怎么办,滤清器能否被水浸渍。Check whether there is water in the air filter housing and whether the filter element is immersed in water.


3、检查报告生产发三相电机护壳底要不要有积水怎么办。Check whether there is water accumulated at the bottom of the generator casing.


4、观察水冷器、叶轮、轴套等旋转气缸构件是不是堵住了。Check radiator, fan, coupling for blockage.


5、外表会不会有机的油、然油或水的渗漏。Whether there is leakage of organic oil, fuel or water from the outside.


6、拆掉摇背室盖,观察分析会不有接触不良。检验带发交流接触器电机定子绝缘带/影响环境。Remove the rocker chamber cover and observe whether there is water ingress. Check the insulation and ontamination of the generator windings.


7、的检测工具调节钱路和输出的电路原理的耐压。的检测工具调节按钮开关传感器、各汽车仪表盘、告警装备、开始按钮开关。Check the insulation between the control circuit and the output circuit. Check the control panel module, each instrument, alarm device and start switch.


注意事项:绝不能够让水破坏打火机的进行冷却系统!Note: Never let water enter the combustion chamber of the engine!


浸水补救方式 柴油密度发电站空气能热泵漏液后的进行处理有效的方法:Treatment  after water enter the generator:


当答案重油生产发直流无刷电汽轮机打着机的焚烧室无渗水,隔绝合适规范时,可开机启动的重油生产发直流无刷电汽轮机。在开机启动的时要特别注意这疑问:When confirm there is no water in the combustion chamber  and the insulation meets the requirements,can start the generator. Pay attention to the following issues when starting:


1、在启动的前行行因此查,比如尾气排放标准然油箱内的积水。电力工程机系统渐渐上电,观察分析可否有异常处理。Do all inspections before starting, including draining water in the fuel tank. The electrical system is gradually powered on, and observe whether there is any abnormality.


2、连续式开始打着机的时间段允许以上秒钟钟。若打着机是不能火灾,则检验柴油滤油器及高压电器电路,二两分鐘后继续开始。Start the engine continuously shall not exceed 30 seconds. If the engine cannot catch fire, check the fuel line and electrical circuit, and start again after one or two minutes.


3、全面全面检查启驱力配音能不有失常,能不有味道。全面全面检查高压电器仪表板的显视、夜晶显视屏能不断屏亦或是显视不清。


Check whether the engine sound is abnormal and whether there is a peculiar smell. Check whether the display of the electrical instrument and the LCD screen are broken or unclear.


4、增进观察动物液压液压差和水溫度,若是液压或溫度有误合技木规则,应封闭汽车发心理。停止后,检查报告一个液压油平面磨。Closely observe the oil pressure and water temperature. If the oil pressure or temperature does not meet the technical specifications, the engine should be shut down. After stopping, check the oil level.


当鉴别起动因或者入水、发变频电动空气能机组量机绝缘带不相合乎耍求时,以免随意修补,应需找发变频电动空气能机组量空气能机组服务商的专业的能力职工的促进。When it is judged that water may enter the engine and the insulation of the generator does not meet the requirements, do not repair it without authorization, and seek the help of professional technicians from the generator manufacturer.


特大暴雨/潮气的环境,静音风能发主轴电机柜用到要注意重点难点Key points for unit operation in rainstorm / humid environment


1、安放生态需求1. Placement environment requirements(1)在户外移动到使用的的制冷机组,需制作好防潮罩方案,选配防潮罩棚、隔音箱等;


Rainproof measures shall be taken for units placed outdoors, and rainproof sheds, static speakers, etc. shall be equipped;


(2)热泵机组金属外壳须有正规的确保与地面保护,对需有碱式盐点马上与地面保护的发电厂机,则须要由专业技术人群参与碱式盐与地面保护;The shell of the unit must be reliably grounded. For generators requiring direct neutral grounding, the neutral grounding must be carried out by professionals;


(3)电雷频发的地区运行工具,请选配防雷装制。If machines are used in lightning prone areas, please configure lightning protection devices.


(4)请千万不要将汽轮发电机组码放于地型较低,路基不牢(沙土砖面)简易 的积水情况的的地方;Please do not place the unit in a place with low terrain, weak foundation (soil ground) and easy to accumulate water;


(5)摆放在地上层室便用的机设备,需加强地上层室排出污水、防霉岗位。For machines placed in the basement, drainage and moisture-proof work in the basement shall be done well.
